A lead shield with a window that has a cut-out for positioning over the patientA lead shield with a window that has a cut-out for positioning over the patient

Over-table lead shield, height adjustable

326/05

Easily adjusted for height & width, and provides full body protection without impeding procedures.

View product details

Description

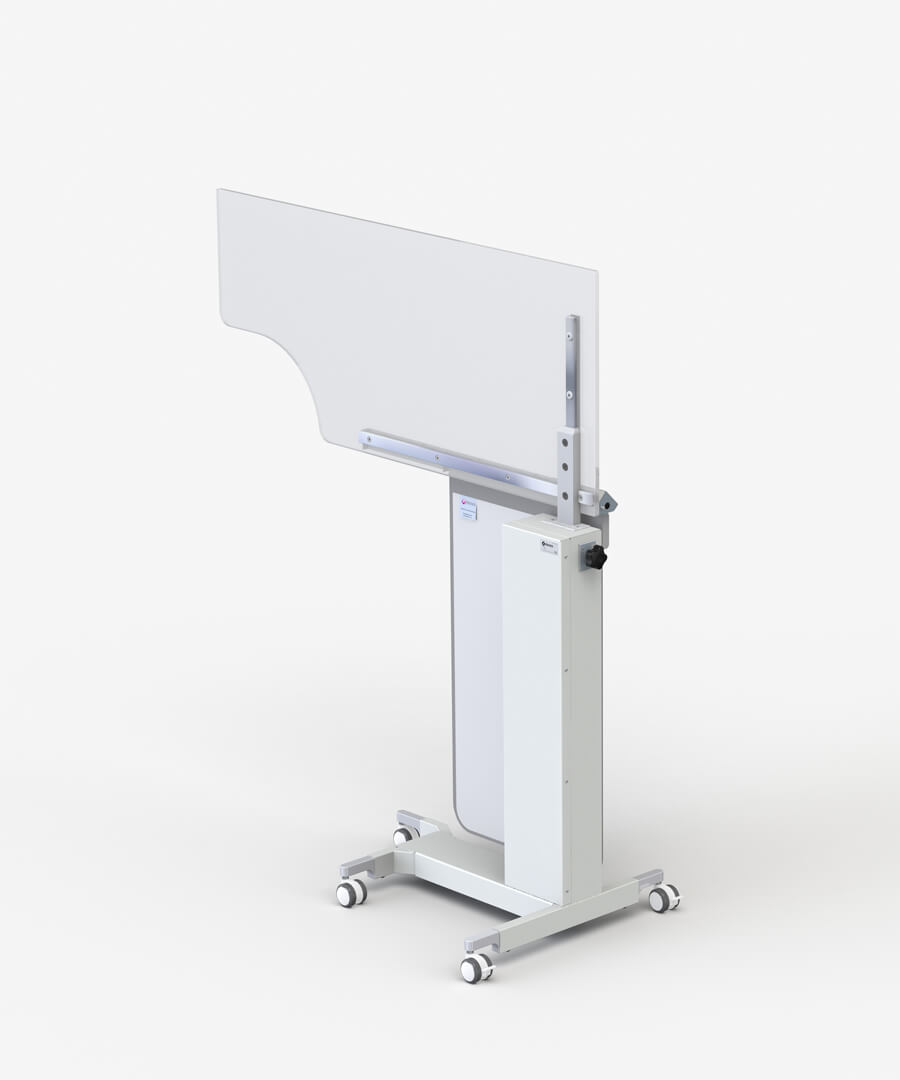

Over-table lead shield with all the attributes of ceiling and table mounted shields in one mobile unit.

A dramatic reduction in radiation exposure to the whole body can be achieved when this mobile X-ray shield is properly utilised. It creates an extensive safety zone within which the practitioner can work. The wide shadow cast by the shield also protects assisting personnel. This mobile shield combines all the attributes of overhead-suspended shields & table mounted shields in a single unit, without the need for installation.

  • The counterbalanced lead acrylic window may be positioned over
    the patient and height adjusted to suit the table.
  • The 50 x 116 cm window is supported at one end by a stand, which is shaped to allow for below table movements of C-arm mounted
    x-ray tubes.
  • The 80cm high flexible curtains, which hang from the window, are adjustable for width from 45 cm to 80 cm. When extended to the tableside they provide maximum protection from scatter radiation.
  • Lead equivalent: 0.5 mm throughout.

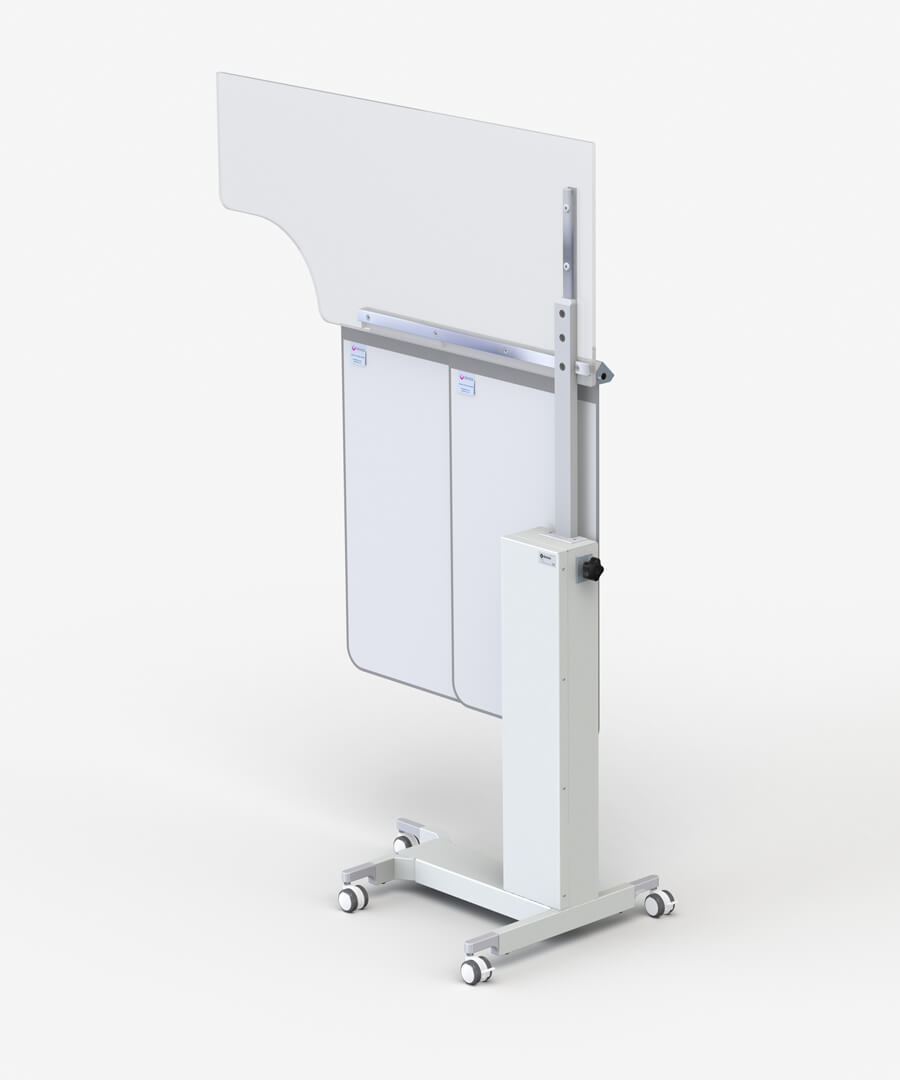

  • The front protective curtain can slide and is shown below, fully extended to the tableside.
  • The counterbalanced window has a maximum overall height of 169 cm. When lowered it is 139 cm high.
    • The widow corner cut-out can be positioned across the table and over the patient. The over-table lead shield is easily adjusted for height & width and provides full body protection without impeding procedures.
