Head end shield for Baxter Carbon FloatLine and SQ14 X-TRA tables

Description

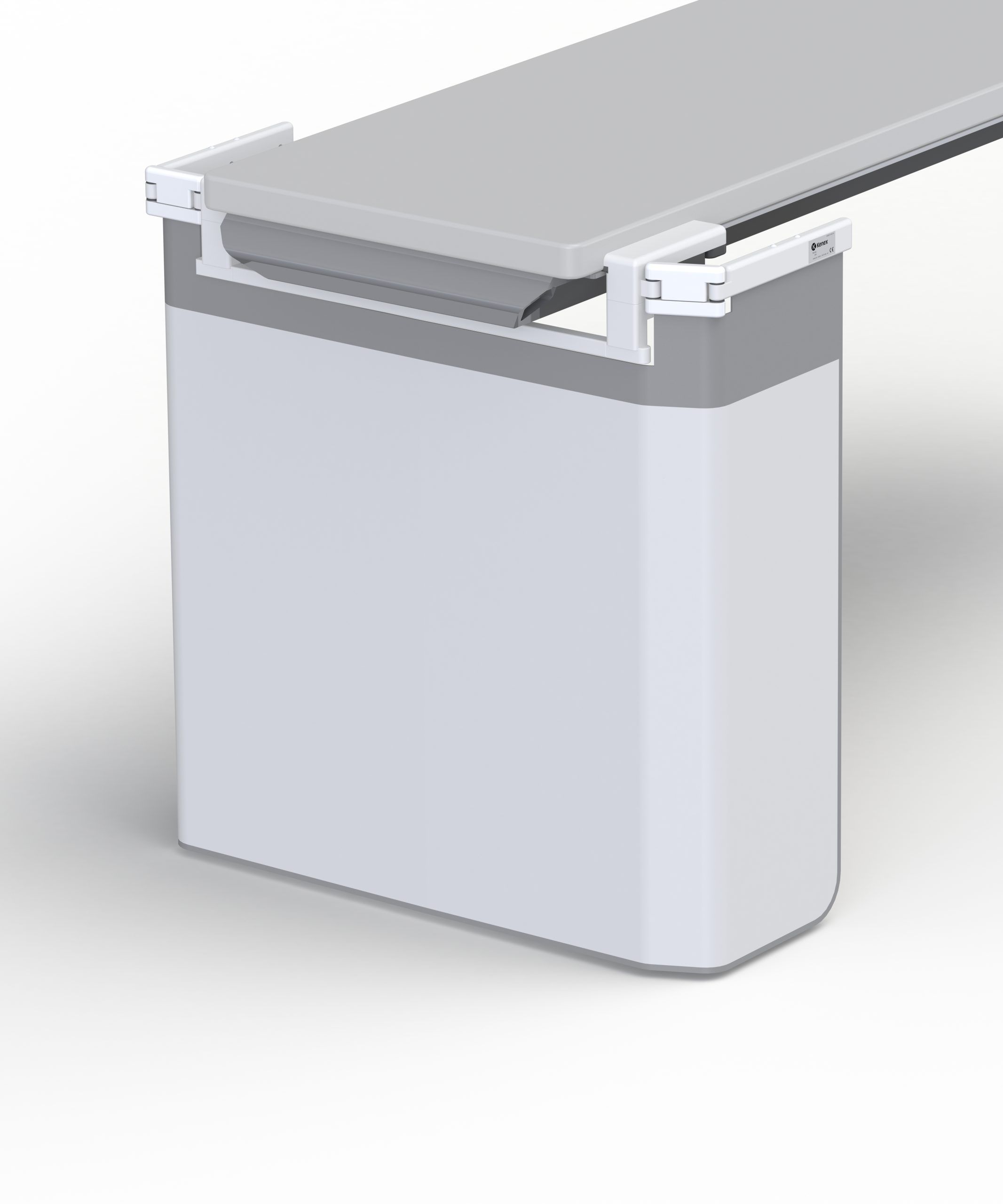

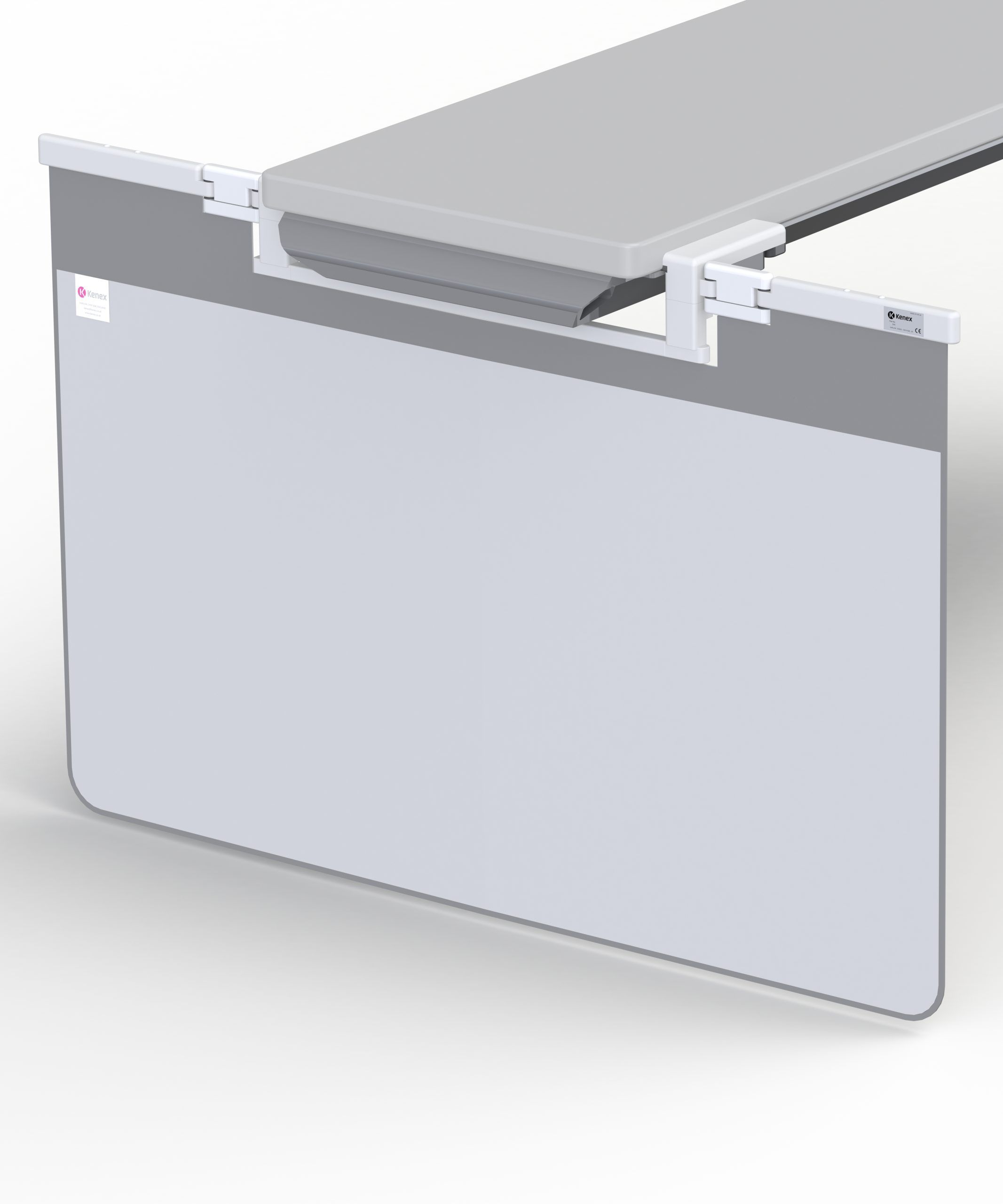

Head end table shield for Baxter Carbon FloatLine and SQ14 X-TRA tables

• Shield & wall rack for use with a 520 mm wide Baxter Carbon FloatLine and SQ14 X-TRA table only.
• Shield slides onto the carbon fibre top and maintains its position by means of adjustable clamps, which allow simple positioning, but prevent unwanted slip, even when the table is tilted.
• Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent).
• Fixed middle section and two pivotal side arms (central section 56 cm wide, pivotal side arms 32 cm wide).
• Side arms can be formed around the user, individually extended forward along the table side, or folded neatly away according to preference.
• The pivotal arms can be quickly repositioned to allow full C-arm movement.
• Each shield is manufactured to suit a specific table and is provided with a wall mounted storage rack.
• When stored on the wall rack the pivotal side arms can be folded inwards to reduce wall space to a minimum.
• Shield size: width 120 cm x 80 cm high.
• Shield weight: 12.1 kg.


Bespoke option 313/A2
When unsure of the table specification on which the head end shield is to be mounted please complete a measurement sheet before ordering. We can offer bespoke shields for tables not covered in our current range.
