Suspended protection for eyes & thyroid
350
Transparent eyes and thyroid radiation shield.
Description
Suspended protection for eyes & thyroid
- Landscape orientation.
- Pivots on the central horizontal axis.
- Bespoke column lengths are available on request.
- Transparent lead glass, minimum 2.2 mm lead equivalent.
- There is a flexible lower curtain fitted to the lower profile, lead equivalent 0.5 mm.
Suspended protection for eyes & thyroid, 350 shield options
40 cm high x 50 cm wide.
30 cm high x 40 cm wide.
Installation options (note: physical installation of the product is not included)
– 350 shield only (product codes ending -007).
– 350 shield & suspension arm (product codes ending -006).
Stationary system (product codes ending -001):
– 350 shield, suspension arm and fixed 80 cm ceiling column.
Ceiling track system (product codes ending -0031):
– 350 shield, 250 cm track & moveable carriage, suspension arm and 80 cm column.
– 350 shield, 420 cm track & moveable carriage, suspension arm and 80 cm column.
Wall mounted system (product codes ending -005):
– 40 cm x 50 cm wide shield only, suspension arm and wall fixing bracket.

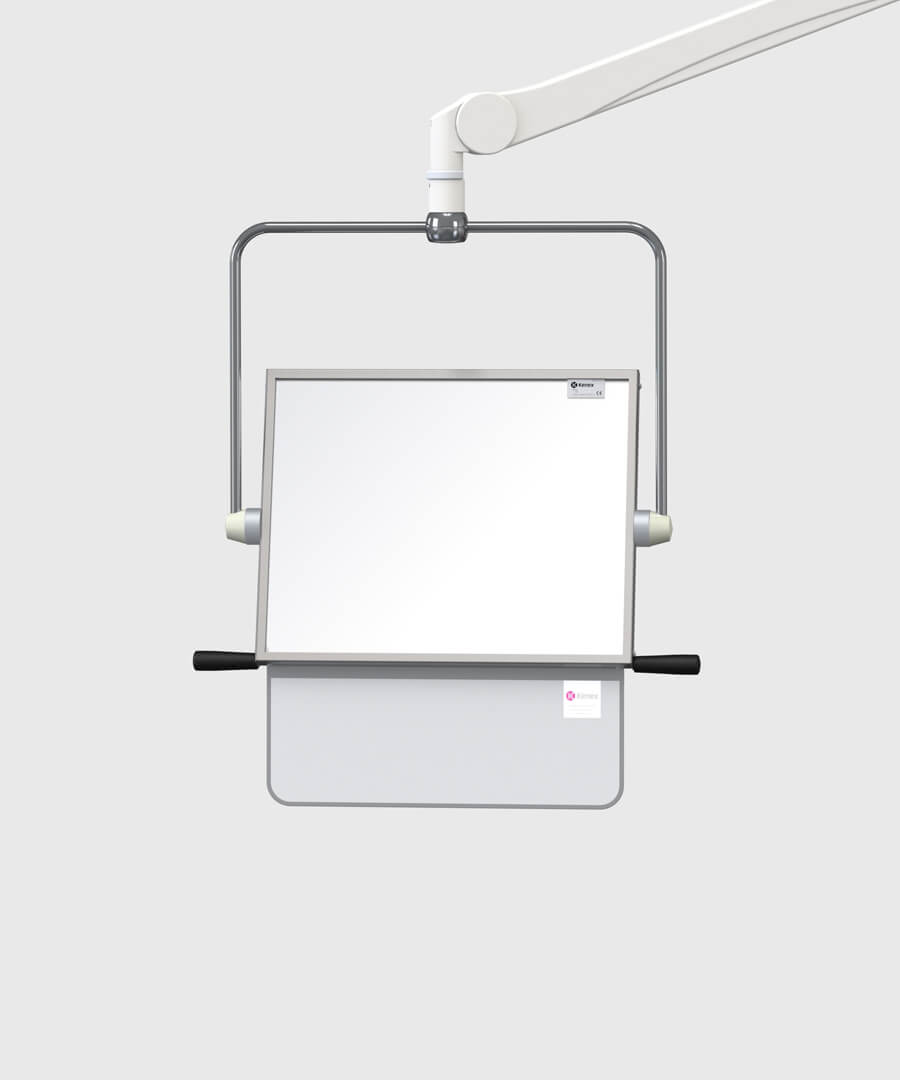

- Overhead shield 350/45-001 (40 cm x 50 cm shield, static ceiling mounted)

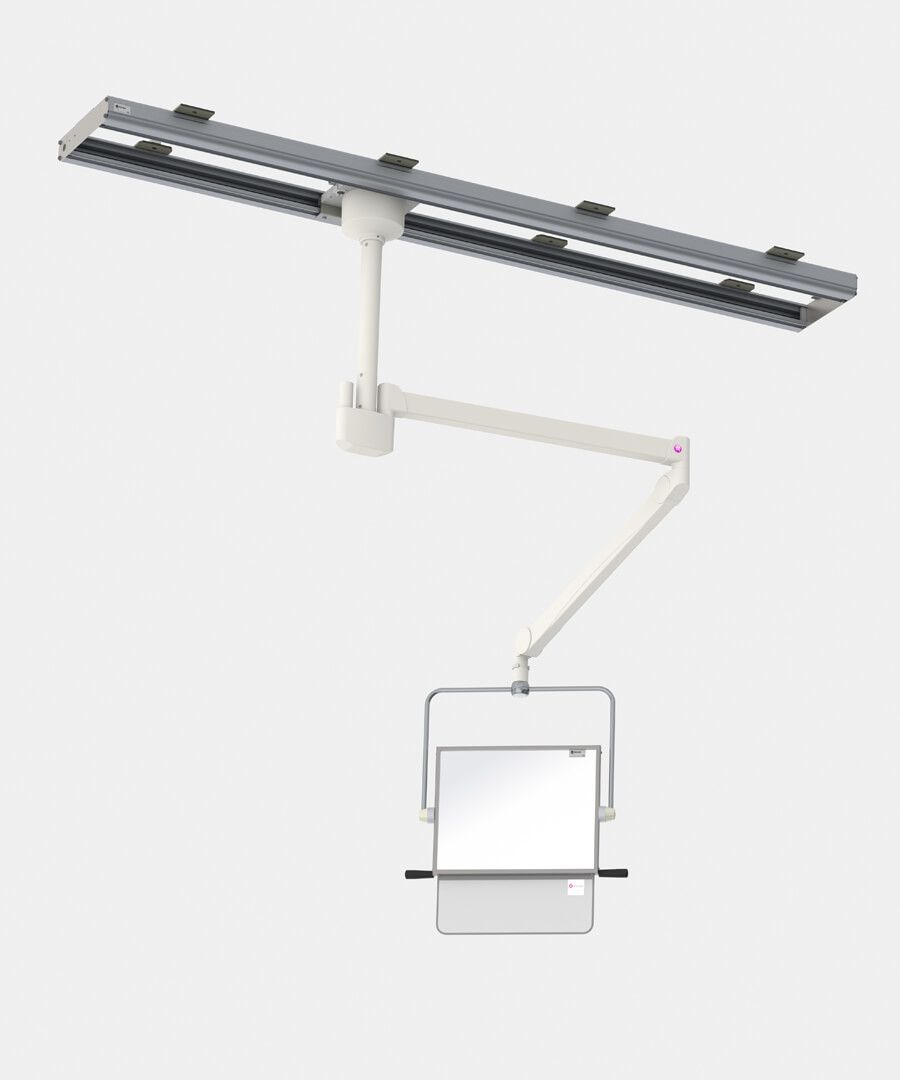

- Overhead shield 350/45-0031 (40 cm x 50 cm shield, moveable ceiling carriage & track)
- Overhead shield 350/45-005 (40 cm x 50 cm shield, wall mounted)

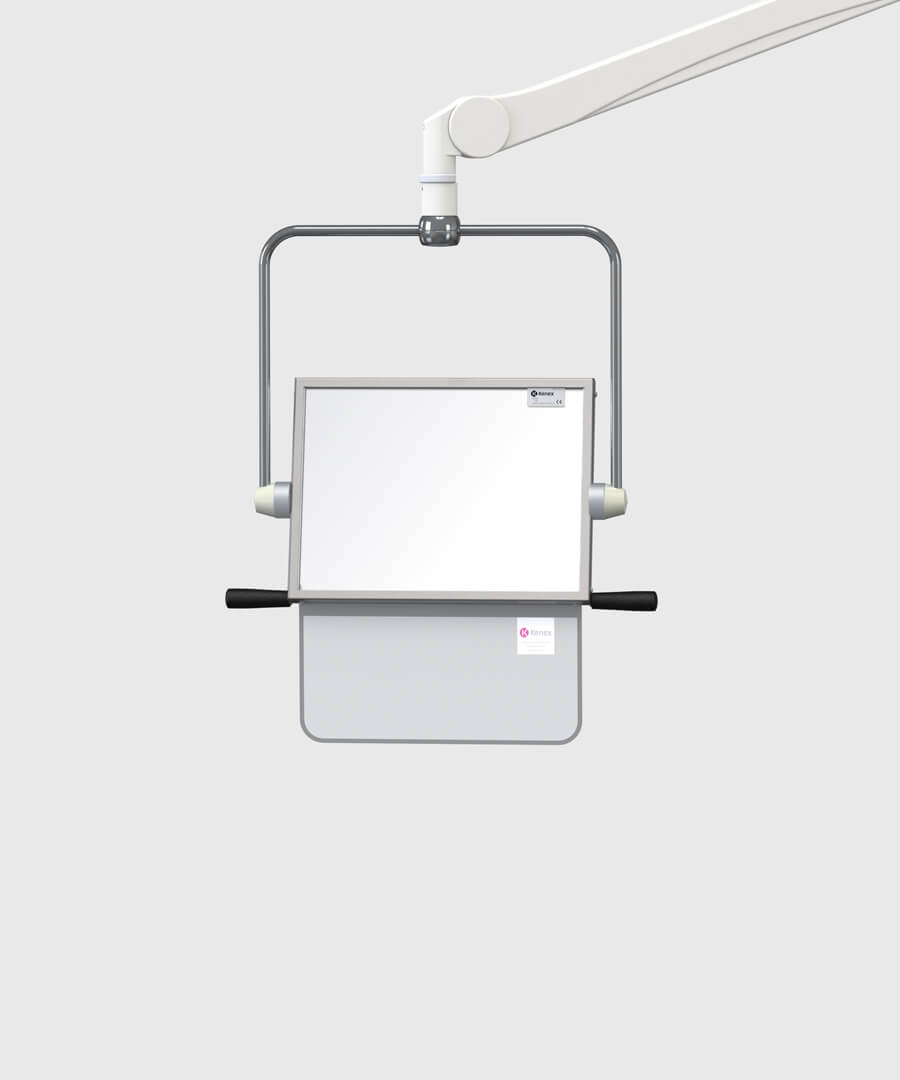

- Overhead shield 350/34-001 (30 cm x 40 cm shield, static ceiling mounted)
- Overhead shield 350/34-0031 (30 cm x 40 cm shield, moveable ceiling carriage & track)
- Overhead shield 350/34-005 (30 cm x 40 cm shield, wall mounted)
