Suspended protection with horizontal pivot

Description

Suspended protection with horizontal pivot

• Transparent lead acrylic, lead equivalent 0.5 mm.
• Landscape orientation.
• Pivots on the central horizontal axis.
• Patient contour corner cut out available for 60 cm x 80 cm shield only.
• Flexible 0.5 mm lead panels are available for lower profile.
• Bespoke column lengths are available on request.
• The ceiling Column can be statically mounted to the ceiling or attached to a movable carriage in a ceiling track.

Suspended protection with horizontal pivot, 351 options

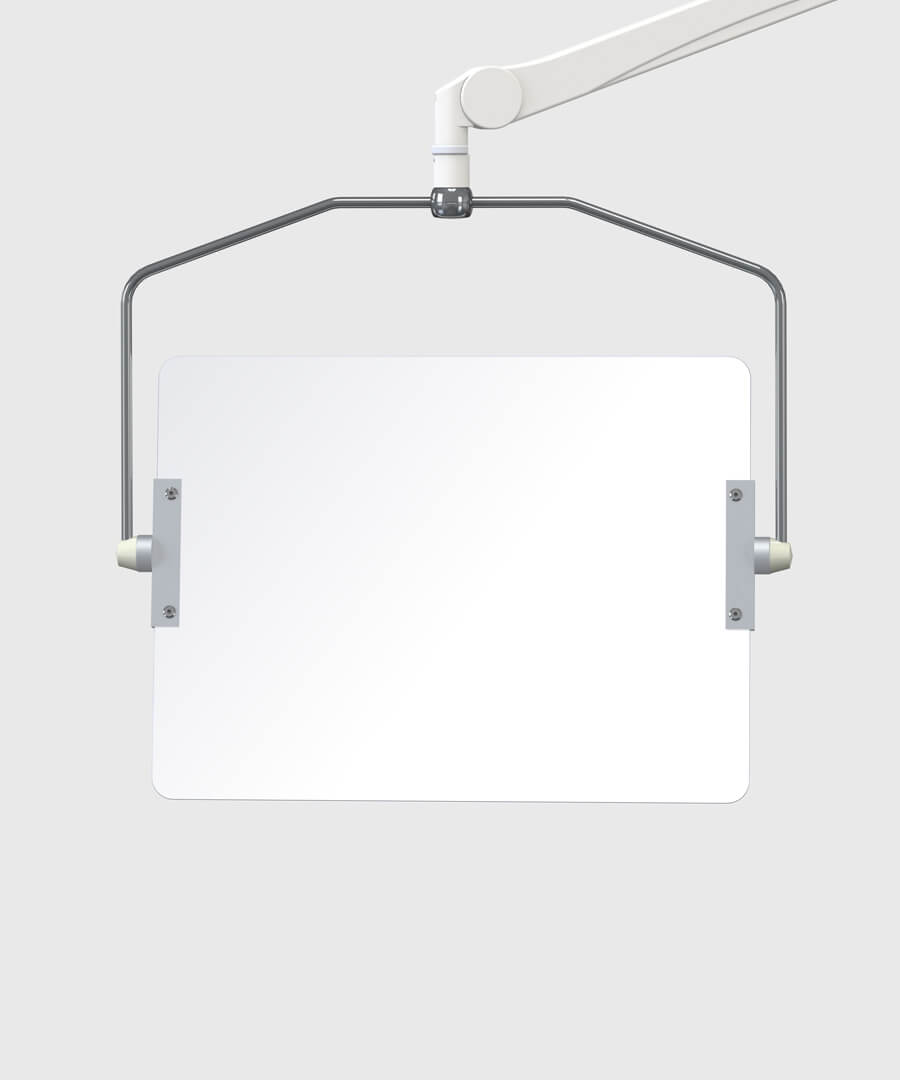

60 cm high x 80 cm wide

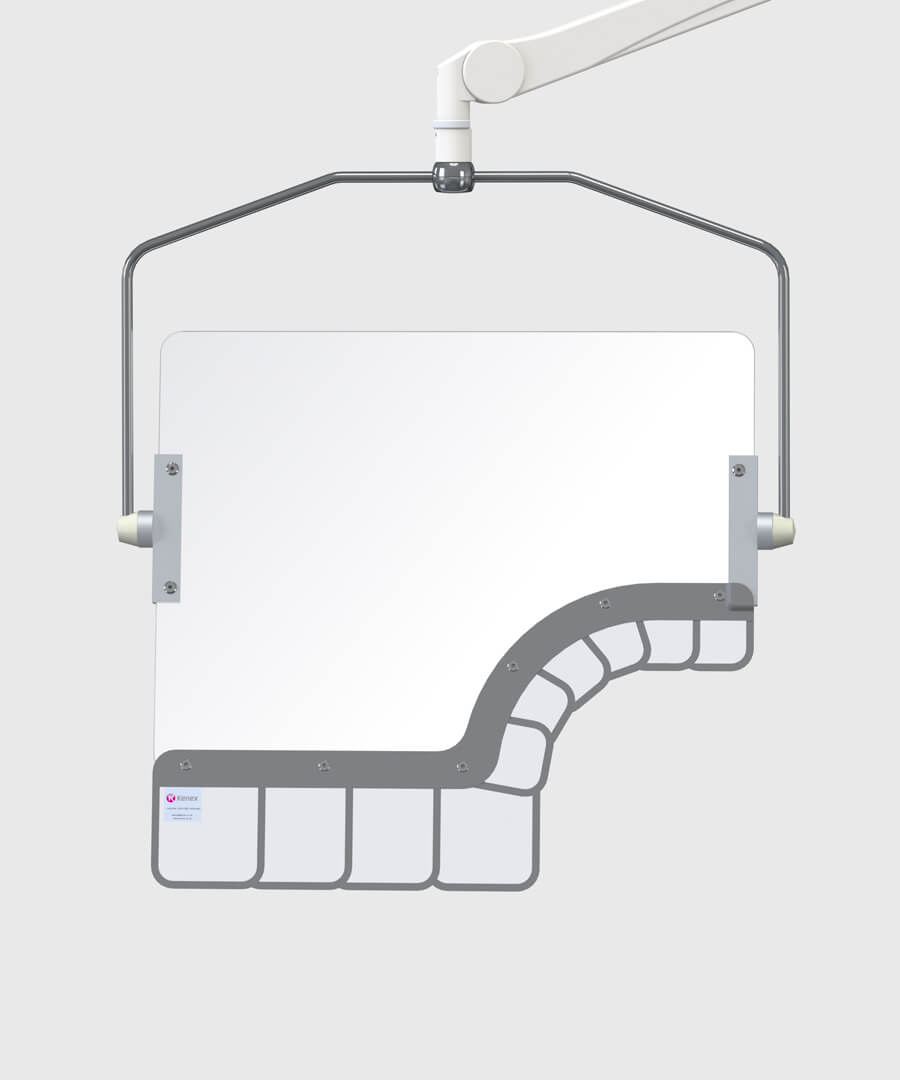

60 cm high x 80 cm wide with patient contour corner cut-out.

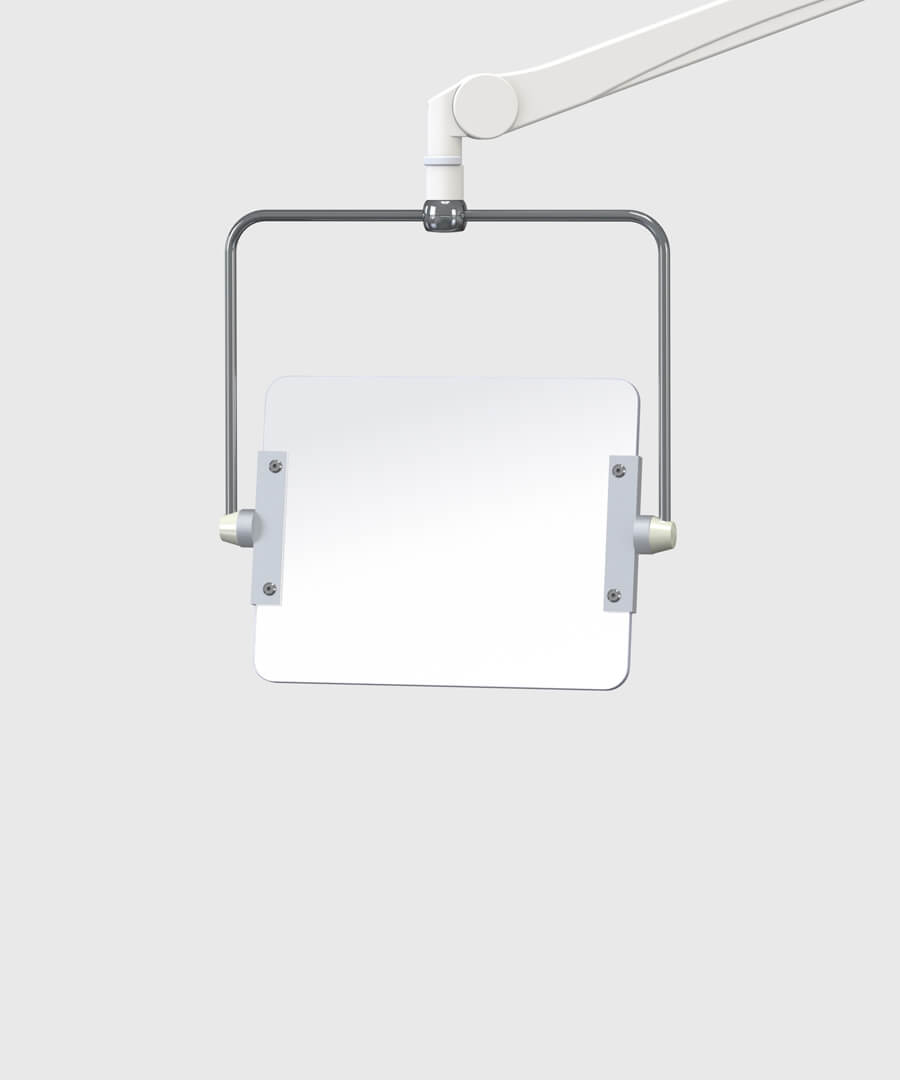

40 cm high x 50 cm wide.
Optional flexible 0.5 mm lead panels fitted around the lower profile.

Installation options (note: physical installation of the product is not included)
– 351 shield only (product codes ending -007)
– 351 shield & suspension arm (product codes ending -006)
Stationary system (product codes ending -001):
– 351 shield, suspension arm & fixed 80 cm ceiling column.

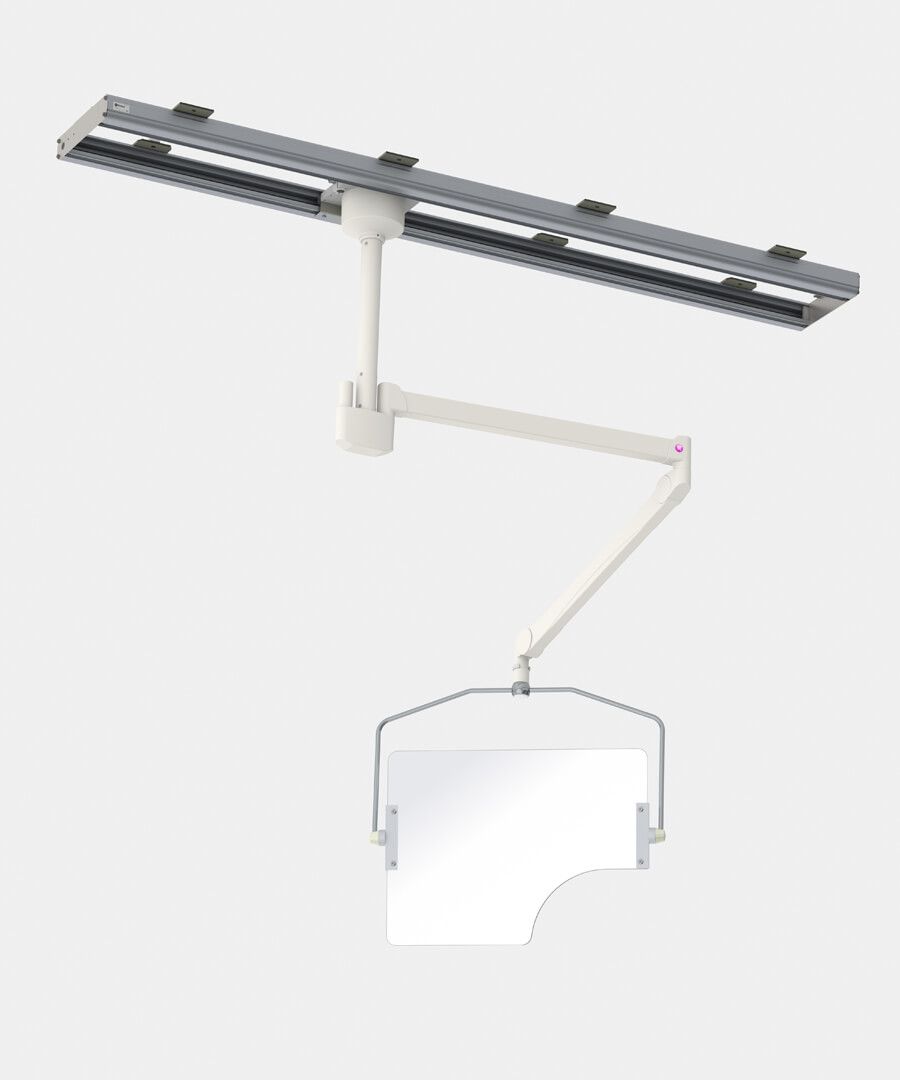

Ceiling track system (product codes ending -0031):
– 351 shield, suspension arm, 80 cm column, 250 cm ceiling track & moveable carriage.
– 351 shield, suspension arm, 80 cm column, 420 cm ceiling track & moveable carriage.
Wall mounted system (product codes ending -005):
– 351 shield, suspension arm & wall fixing bracket.
