354 centre mount shield and lamp suspended from a track354 centre mount shield and lamp suspended from a track
LED 130F lampLED 130F lamp

Overhead protection with centre mount shield & lamp

354/P76/LED

Stationary and mobile installations for 354 centre mount shield and LED lamp combinations.

View product details

Clear selected products

Description

Overhead protection with centre mount – 354 shield & lamp combinations:

Installation options (note: physical installation of the product is not included)
Stationary system for overhead protection with centre mount – 354 shield & lamps (product codes ending -001):
– 80 cm ceiling column and 2 x suspension arms.
Ceiling track systems for overhead protection with centre mount – 354 shield & lamps (product codes ending -0031):
– 250 cm ceiling track & carriage, 80 cm ceiling column and 2 x suspension arms.*
– 250 cm ceiling track & carriage, energy chain (cable management system), 80 cm ceiling column, and 2 x suspension arms.
– 420 cm ceiling track & carriage, 80 cm ceiling column and 2 x suspension arms.*
– 420 cm ceiling track & carriage, energy chain (cable management system), 80 cm ceiling column, and 2 x suspension arms.
(Bespoke ceiling column and track lengths are available on request)

Choice of LED lamp heads
LED 130F

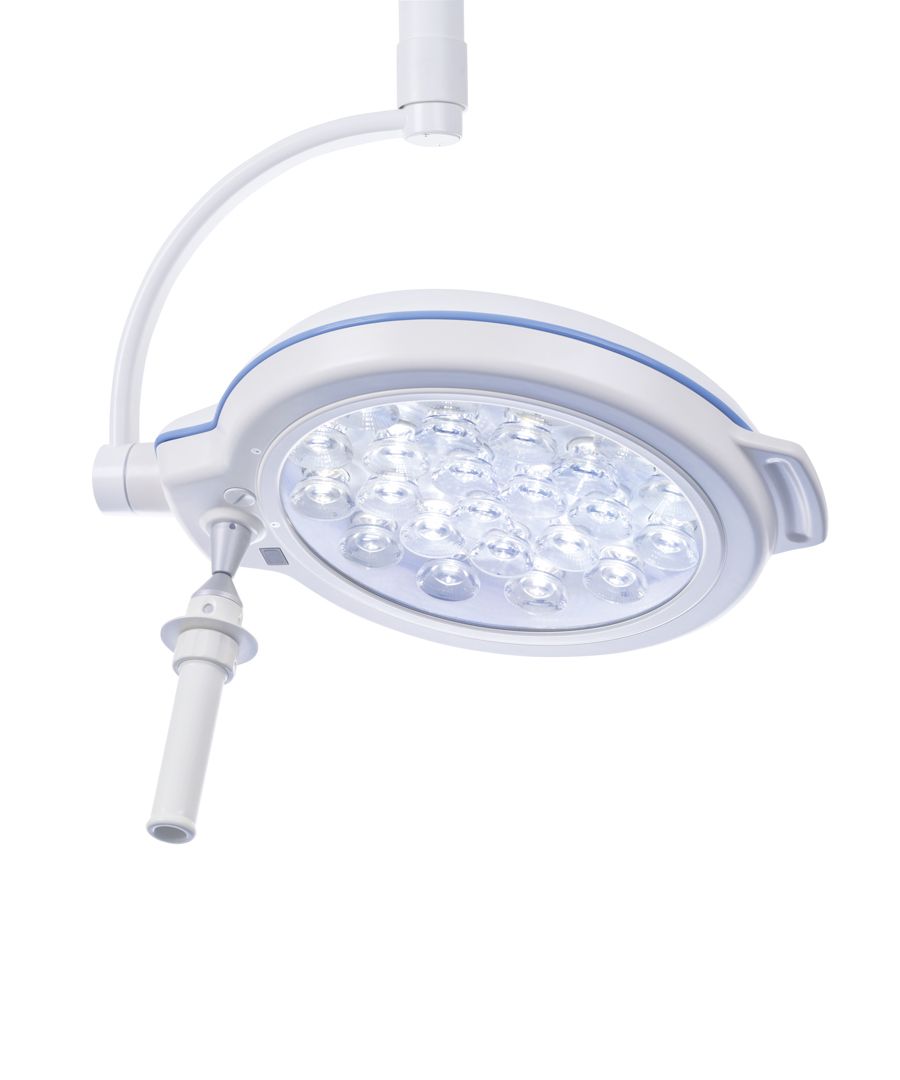

LED 150F

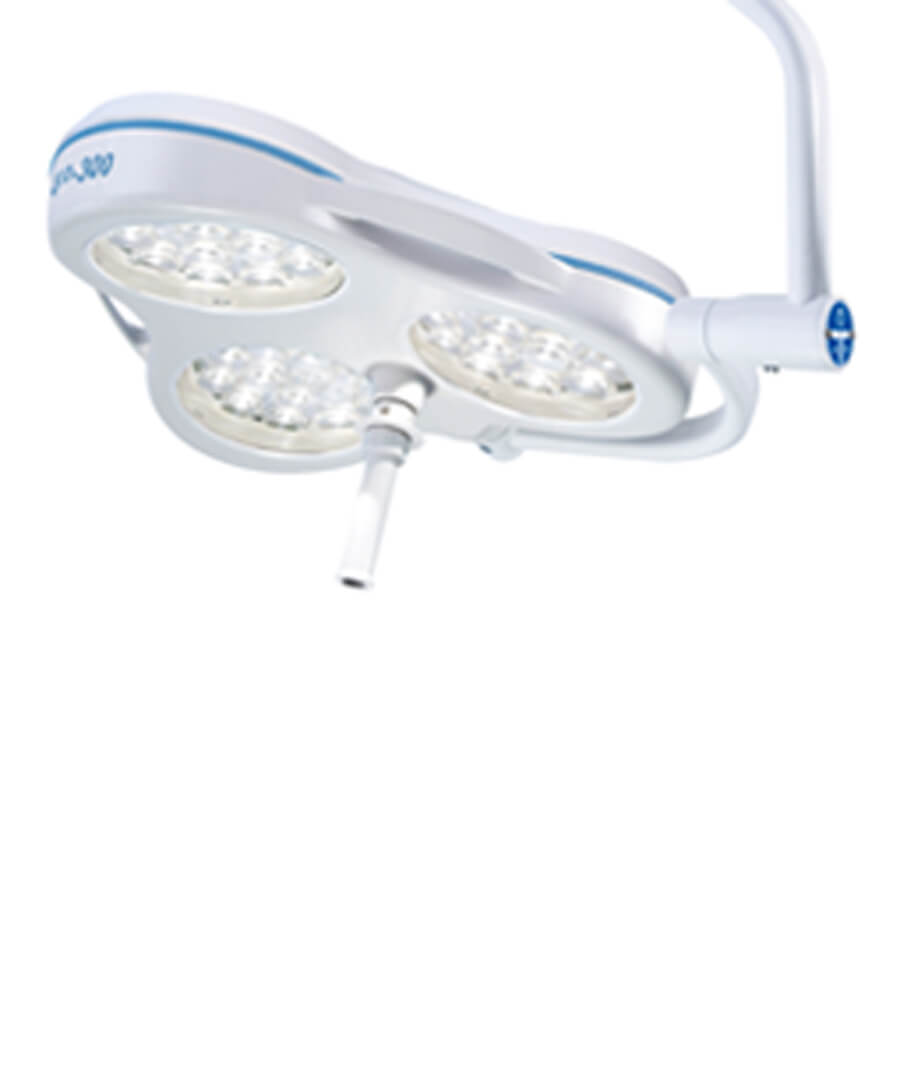

LED 300DF SC

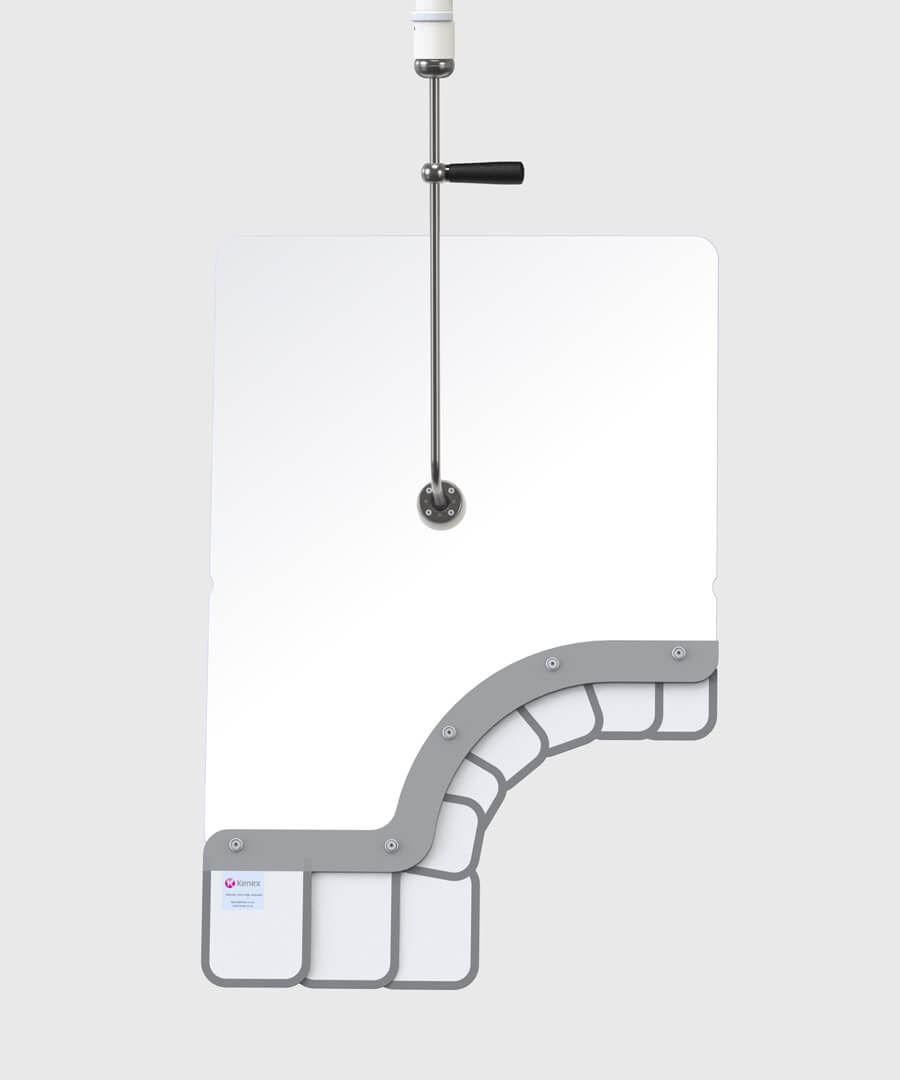

354 shield with centre mount
76 cm high x 61 wide with patient contour corner cut-out.
Ball & socket joint for 360 degree rotation.
Optional flexible 0.5 mm lead panels fitted around lower profile.

* Please note that a cable management system of some type is needed when suspending electrically powered devices.
